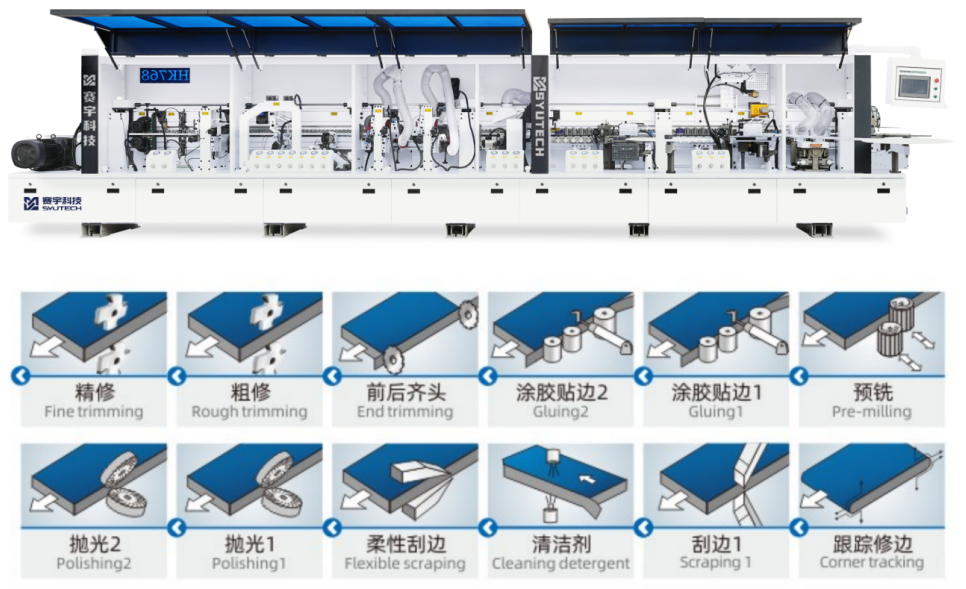

HK-768 重型全自动高速封边机
Heavy duty fully automatic high-speed edge banding machine
技术参数
| 型号 | Model | HK-768 |
| 外形尺寸 | Overall dimensions | 8500*800*1650mm |
| 封边带宽度 | Edge banding width | 10-60mm |
| 整机重量 | Overall weight | 3T |
| 封边带厚度 | Edge banding thickness | 0.4-3mm |
| 总功率 | Total power | 20kw |
| 抛光电机功率 | Polishing | 0.18*4 |
| 输送带电机 | Conveyor belt motor | 4kw |
| 额定电压 | Rated voltage | 380V 50HZ |
| 工件最小长度 | Minimum length of workpiece | ≥150mm |
| 额定气压 | Rated air pressure | 0.7MPA-0.9MAP |
| 工件最小宽度 | Minimum width of workpiece | ≥40mm |
| 工件输送速度 | Minimum conveying speed | 18-22-25m/min |
| 系统 | System | 汇川（Inovance） |
| 触摸屏 | Touch screen | 昆仑动态屏（MCGS touch screen） |
